Award winning 1625mm wide sublimation printer

High-speed printing with detail and vivid colour.
More possibilities across a wide range of applications.

mutoh-xpj-1682wr-sublimation-printer-app

Apparel​

mutoh-xpj-1682wr-sublimation-printer-int

Interior Decor

mutoh-xpj-1682wr-sublimation-printer-sof

Soft Signage

XpertJet-1682WR Outstanding Features

  • 1625mm wide dye-sublimation

  • Staggered dual heads/ up to eight color

  • Multi-Language OLED Display

  • Enhanced media handling & transport Multi-stage pressurizing mechanism

  • Mutoh proprietary High Precision Aluminium Rail Mechanism

  • Automatic User Bi-Directional Alignments

  • Smart Communication through Mutoh Status Monitor

  • Newly designed media feed flanges

  • Automatic sheet off function

  • Take-up system optional


"Made in Japan Quality" is your certainty of excellence and lasting value.

mutoh-xpj-1682wr-sublimation-printer-fea

High precision aluminium rail mechanism

Mutoh, known for their superior print quality, utilise their proprietary High Precision Aluminium Rail Mechanism to delivery unmatched excellence in the XPJ-1682WR.

mutoh-xpj-1682wr-sublimation-printer-alu
mutoh-xpj-1682wr-sublimation-printer-int

Internal lighting


Internal LED lighting illuminates the work area to easily monitor the print status.

Clearly see jobs as they print to for early detection of possible issues and minimise wastage.

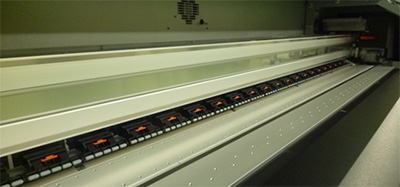

Multi-stage pressurizing mechanism

Media feeding is affected by pressure and paper variables.

MUTOH‘s unique “Multi-stage pressurizing mechanism” enhances media feed stability for various media by selecting the appropriate pressure mode.

The pressure mode has four levels: high, middle, low and partial pressure. Thin and soft media that may struggle to be fed by conventional machines now can be supported by setting the pressure low. This function expands media feed capability.  Furthermore, media cockling can be minimized by canceling multiple pressure rollers individually.



Pressure range of XPJ-1682WR.

mutoh-xpj-1682wr-sublimation-printer-pre
mutoh-xpj-1682wr-sublimation-printer-pre
mutoh-xpj-1682wr-sublimation-printer-tou

Multi-language intuitive OLED display


Mutoh's NEW Electrostatic touch panel improves panel operation and user experience. The user-friendly touch panel provides high visibility, has a large 'real-time' status bar and illuminates keys necessary for desired functions assisting in navigation.

The new panel also supports 8 languages: Japanese, English, Germany, French, Italian, Spanish, Dutch, Portuguese.

High print quality with the touch of a button with DropMaster 2

Bi-directional alignment is crucial for image definition and overall image smoothness.
Mutoh's DropMaster 2 technology automatically calibrates bi-directional alignment according to the thickness of the media, saving time and reduces variation in adjustments that can occur between different operators.
